Twist Y Connector Kit
Classic rotating hemostasis valve, rated to 500 psi.

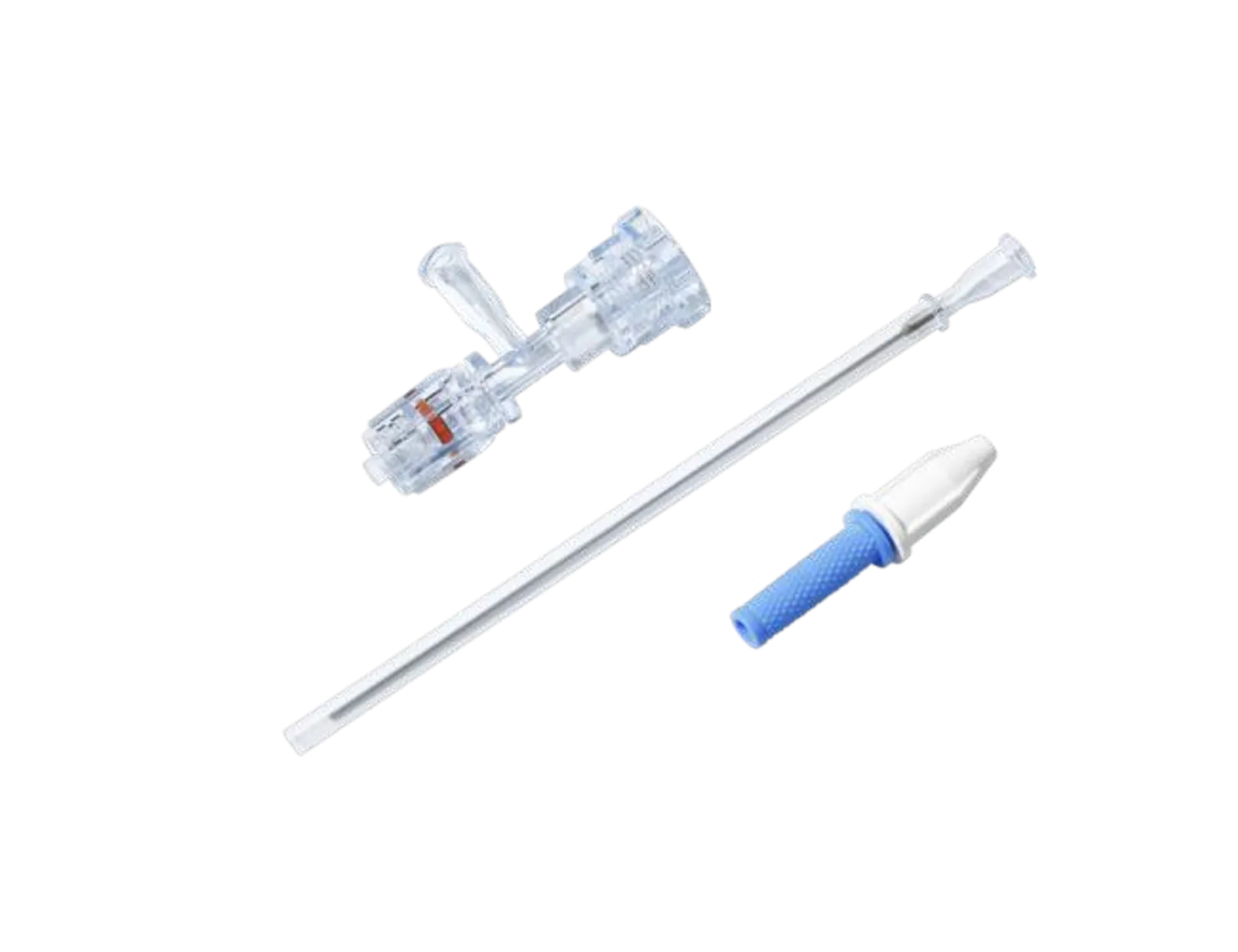

A conventional rotating hemostasis valve for labs that prefer the twist-to-seal workflow. Supplied as a kit with a blue torque device and guidewire introducer, in standard and short-twist configurations.
- FDA product code
- DTL
- Device listing
- D577325
- Classification
- Class II, 510(k) exempt
- Manufacturer
- Beijing Demax Medical Technology Co., Ltd.
Features
- Easy rotating handles with a positive seal
- Pressure rating up to 500 psi
- Y-shaped side branch for pressure monitoring and contrast injection
- Blue torque device and guidewire introducer included
Ordering information
| Name | Ref. No. | Torque device | Guidewire introducer | Pressure (psi) | Shape |
|---|---|---|---|---|---|
| Y Connector Kit (Twist) | DHRY01B | Blue torque | Yes | 500 | Y |
| Y Connector Kit (Short-Twist) | DHDY01B | Blue torque | Yes | 500 | Y |
Specifications from the current Zenith 11 Medical catalog. Confirm configuration and sterility requirements at time of order. Prescription use only; refer to the instructions for use.
