Hemostasis
Radial Artery Compression Device
Dial-in hemostasis with a window on the puncture site.

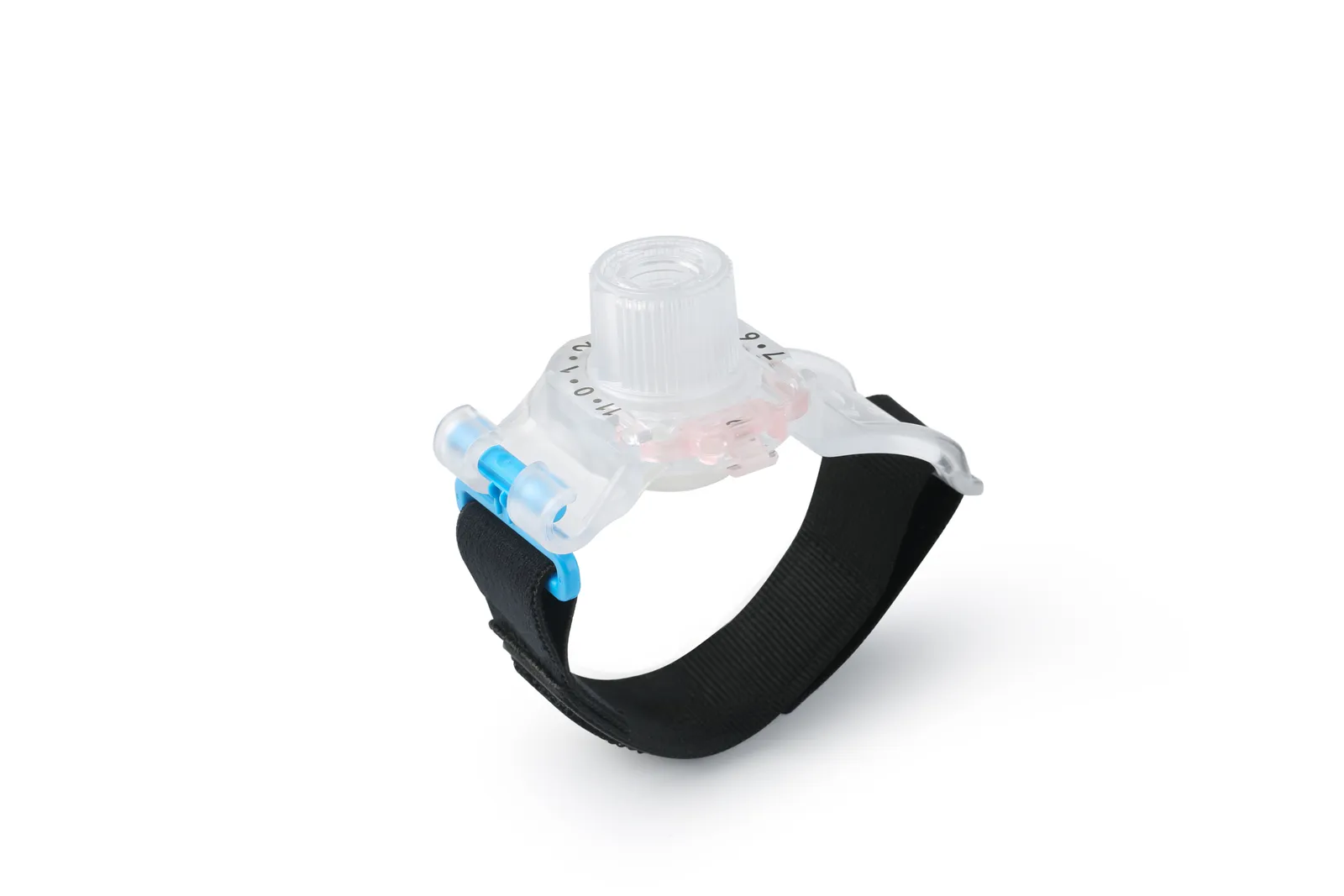

A rotary radial artery compression device for hemostasis after transradial access. A graduated pressure knob replaces syringe inflation, a transparent plate keeps the puncture site in view, and a safety lock prevents accidental pressure changes. No inflator syringe to lose or reuse.
- FDA product code
- DXC
- Device listing
- D576827
- 510(k)
- K222182
- Manufacturer
- Beijing Demax Medical Technology Co., Ltd.
Features
- Transparent compression plate for precise placement and continuous observation of the puncture point
- Soft medical elastomer force pad for patient comfort
- Spherical force concentration for effective, focused hemostasis
- Compression plate does not contact the wrist, avoiding pressure on the ulnar artery
- Self-locking fixed loop for stable pressure control

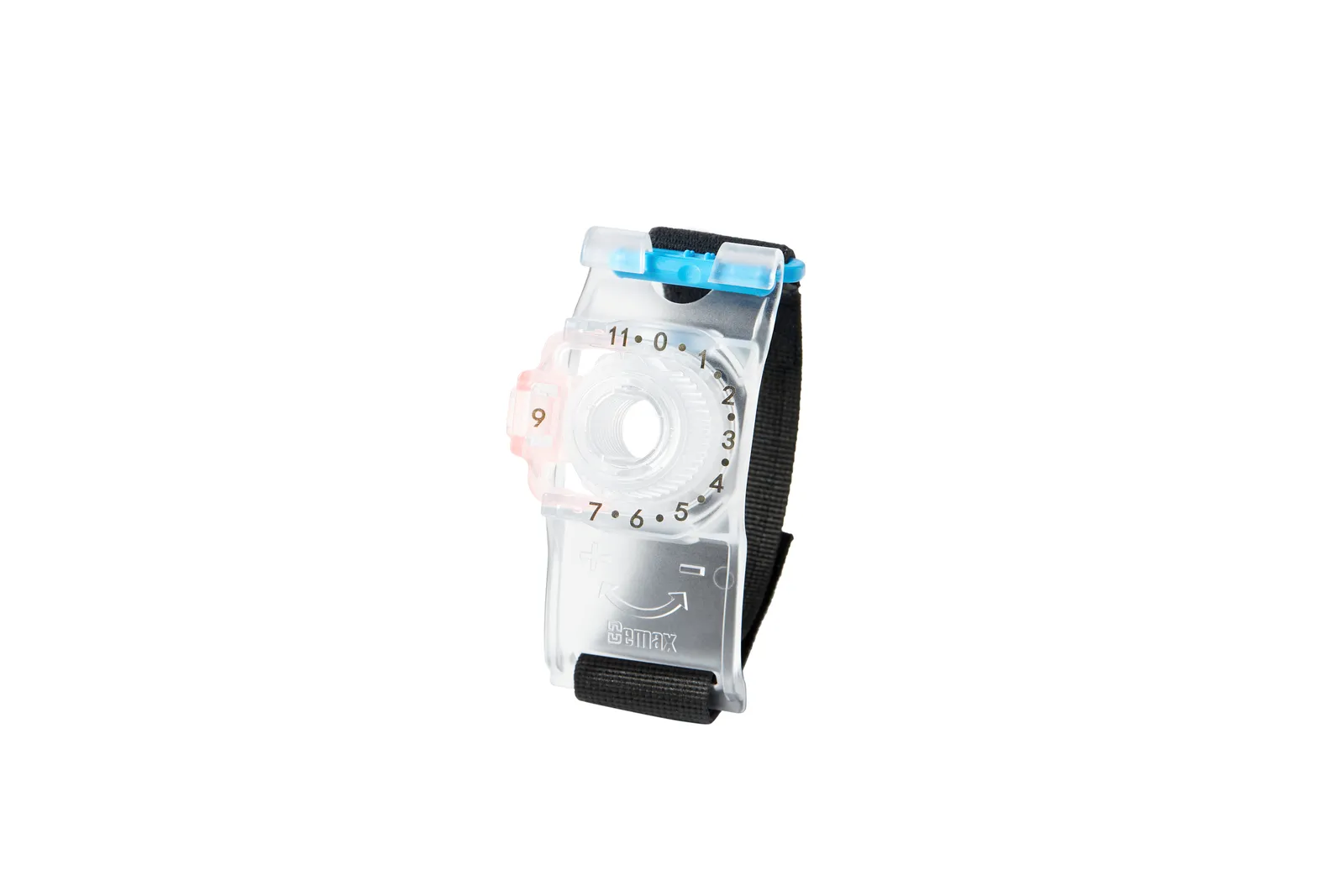

- Scaled dial for gradual, repeatable decompression
- Safety lock button prevents rotation after accidental contact
In practice
- Pressure is set by counting knob rotations, so decompression can follow a written protocol
- Breathable nylon strap instead of a plastic band, in elastic and non-elastic versions
- One integrated device with no separate inflator to manage
Ordering information
Models
| Description | Ref. No. | Strap length (mm) |
|---|---|---|
| Radial Artery Compression Device (elastic pressure belt) | DRD17 | 170 |
| Radial Artery Compression Device (elastic pressure belt) | DRD19 | 190 |
| Radial Artery Compression Device (elastic pressure belt) | DRD21 | 210 |
| Radial Artery Compression Device (non-elastic pressure belt) | DRPD17 | 170 |
| Radial Artery Compression Device (non-elastic pressure belt) | DRPD19 | 190 |
| Radial Artery Compression Device (non-elastic pressure belt) | DRPD21 | 210 |
Sizing guide
| Wrist circumference | Recommended model |
|---|---|
| Under 15 cm | DRD17 / DRPD17 |
| 15 cm to 18 cm | DRD19 / DRPD19 |
| 18 cm and over | DRD21 / DRPD21 |
Specifications from the current Zenith 11 Medical catalog. Confirm configuration and sterility requirements at time of order. Prescription use only; refer to the instructions for use.
