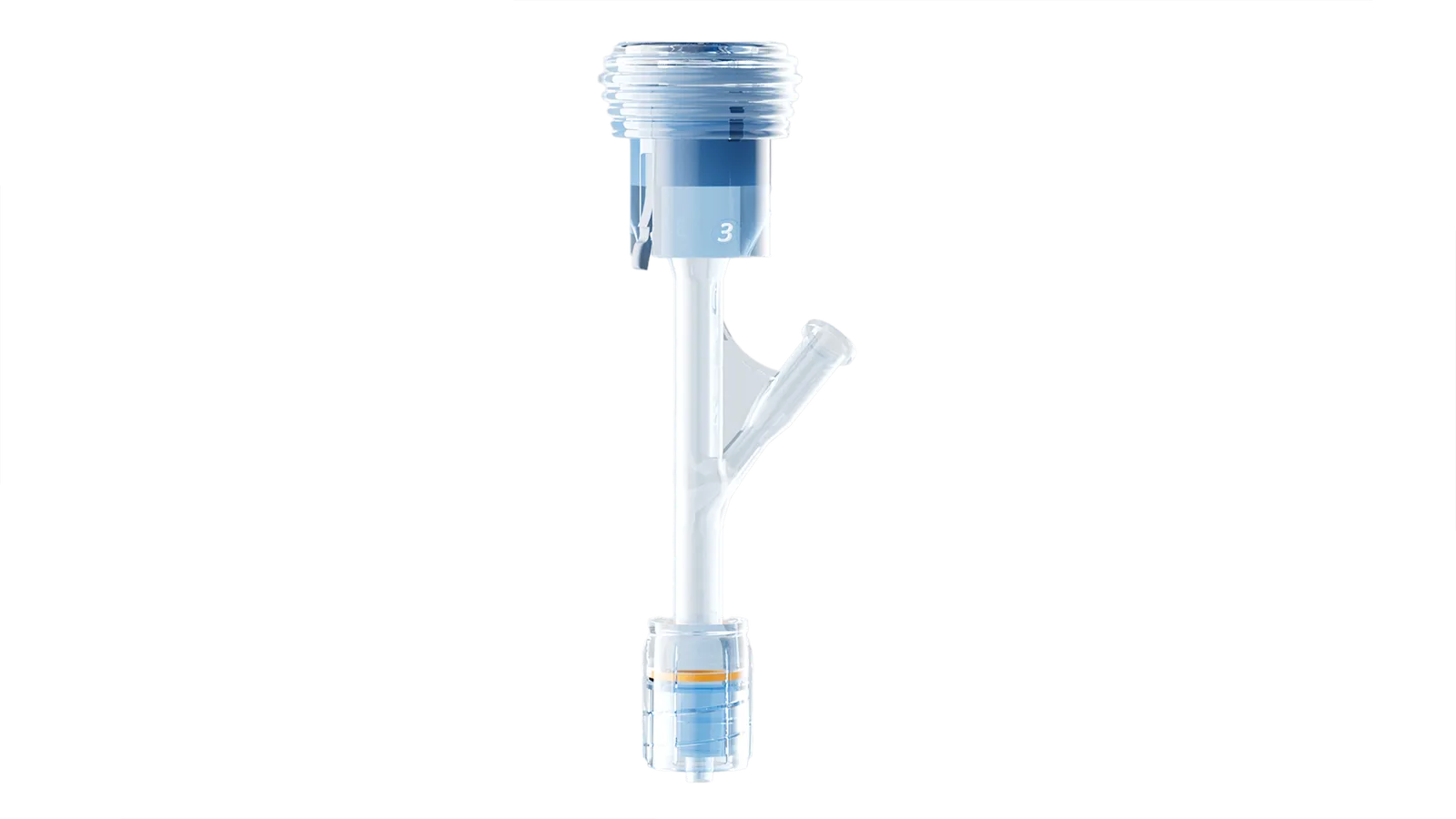

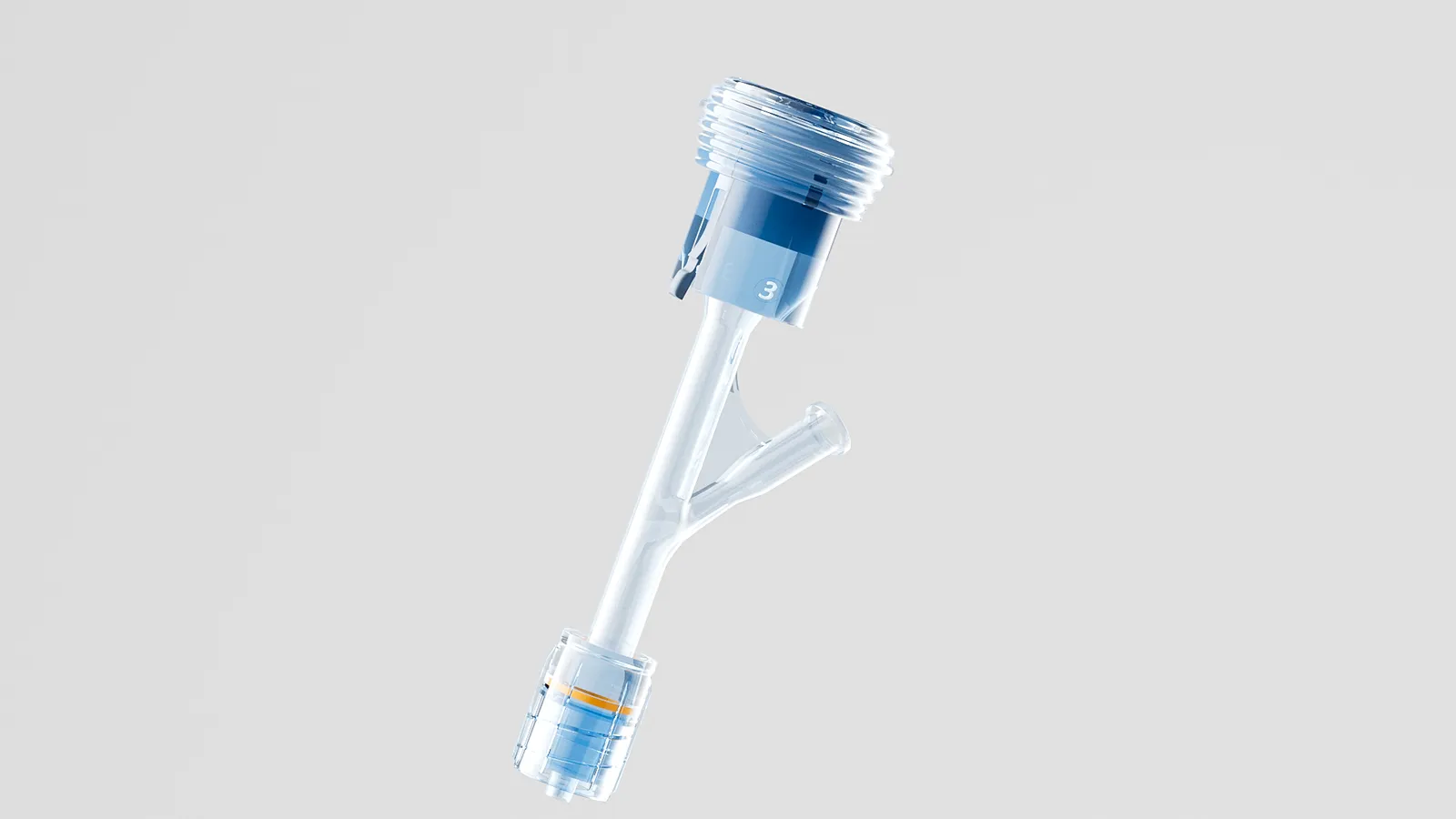

Push-Click Y Connector Kit
One-handed hemostasis valve that closes itself.

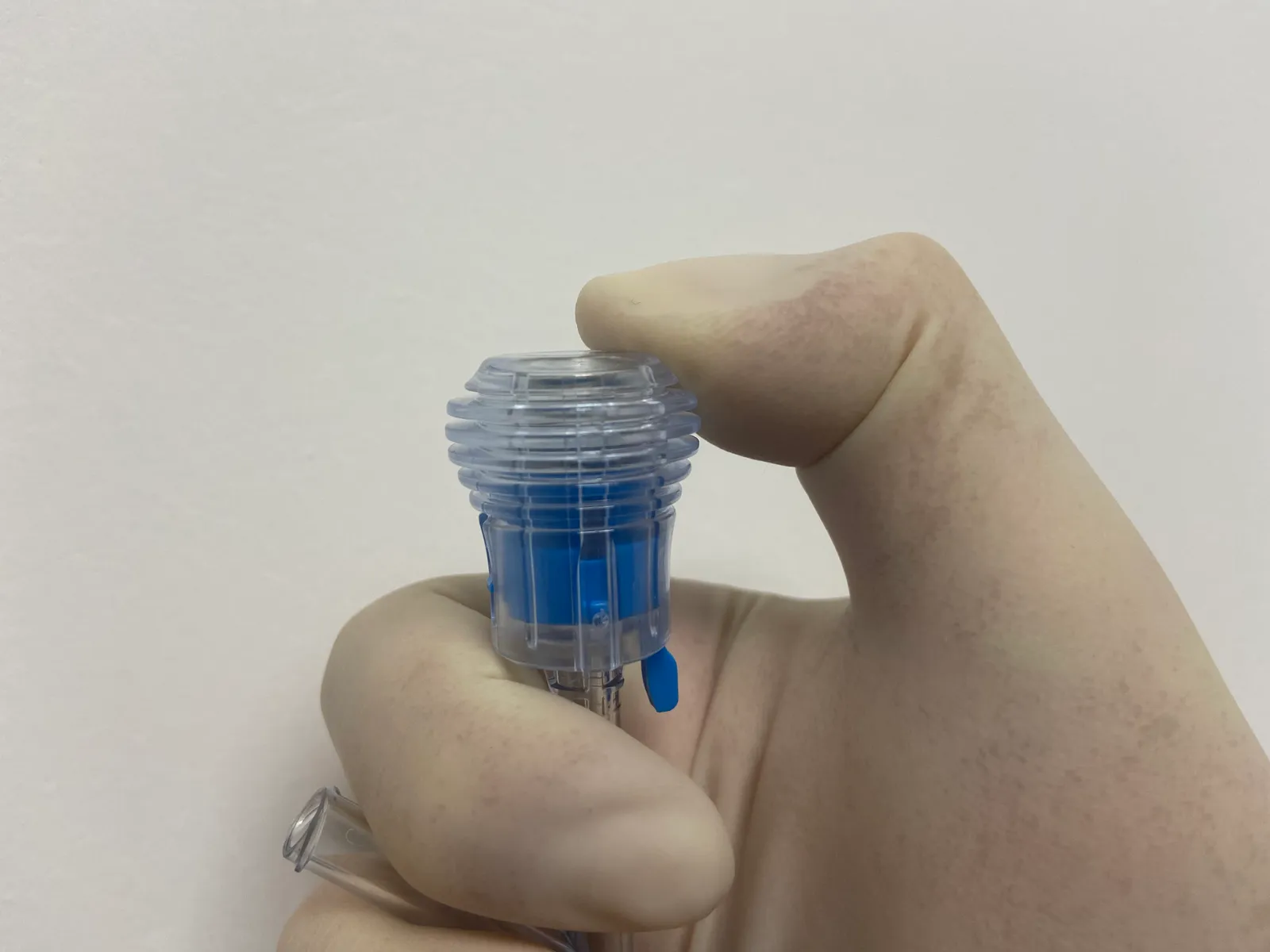

A push-click hemostasis valve for coronary and peripheral intervention. Press to open, release to close. The valve springs shut on its own, so devices can be advanced or rotated in the closed position with minimal blood loss, and the operator keeps one hand free.
- FDA product code
- DTL
- Device listing
- D577325
- Classification
- Class II, 510(k) exempt
- Manufacturer
- Beijing Demax Medical Technology Co., Ltd.
Features
- Push-click switch rebounds closed automatically, reducing blood loss
- Enlarged threaded knob for comfortable one-handed pressing
- Maximum working pressure of 180 psi
- 2.7 ± 0.1 mm inner diameter accommodates larger devices

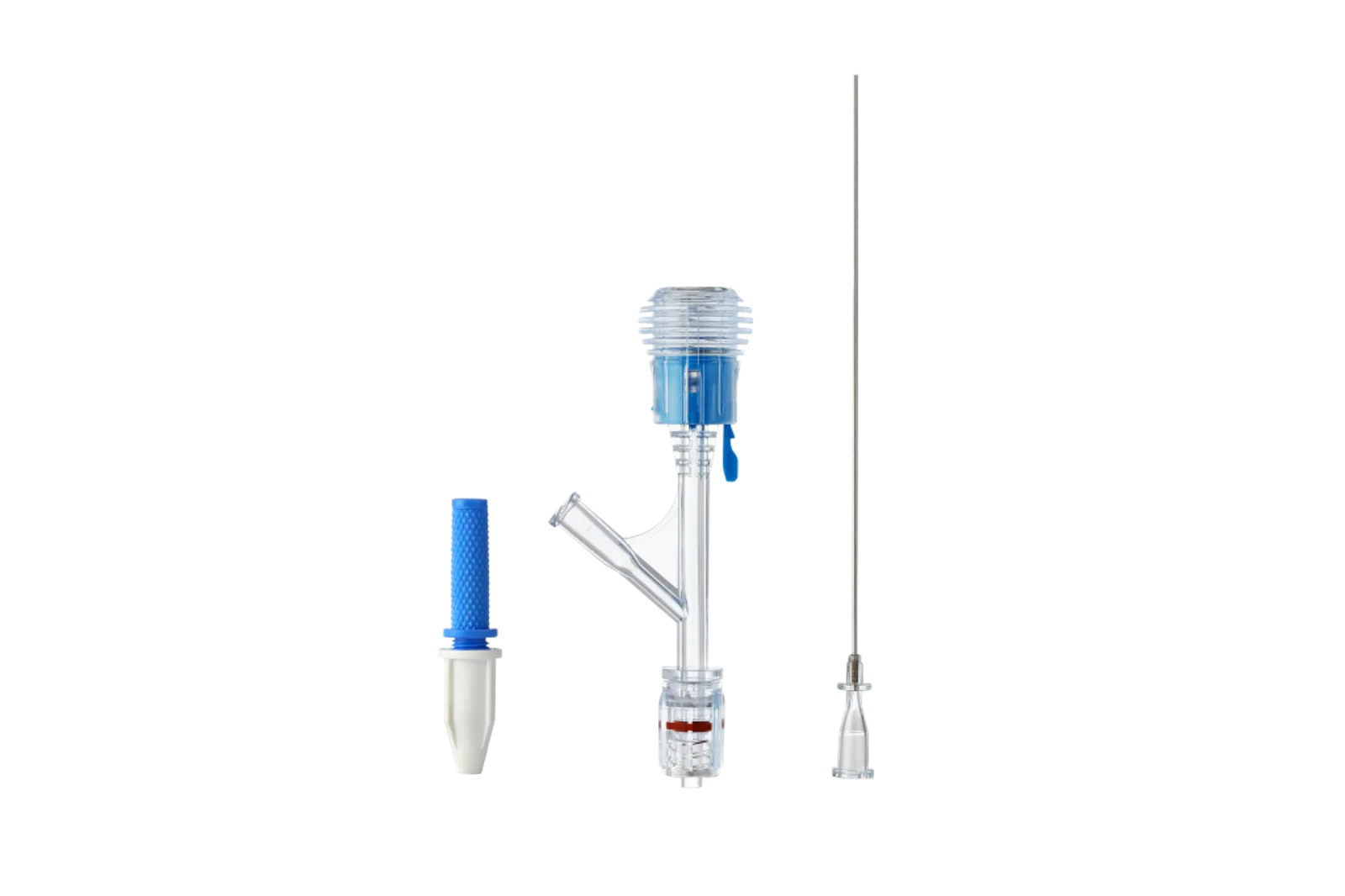

- Torque device and guidewire introducer sized for 0.014 in to 0.021 in guidewires

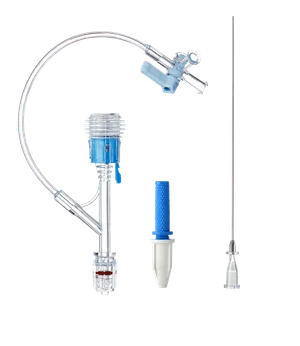

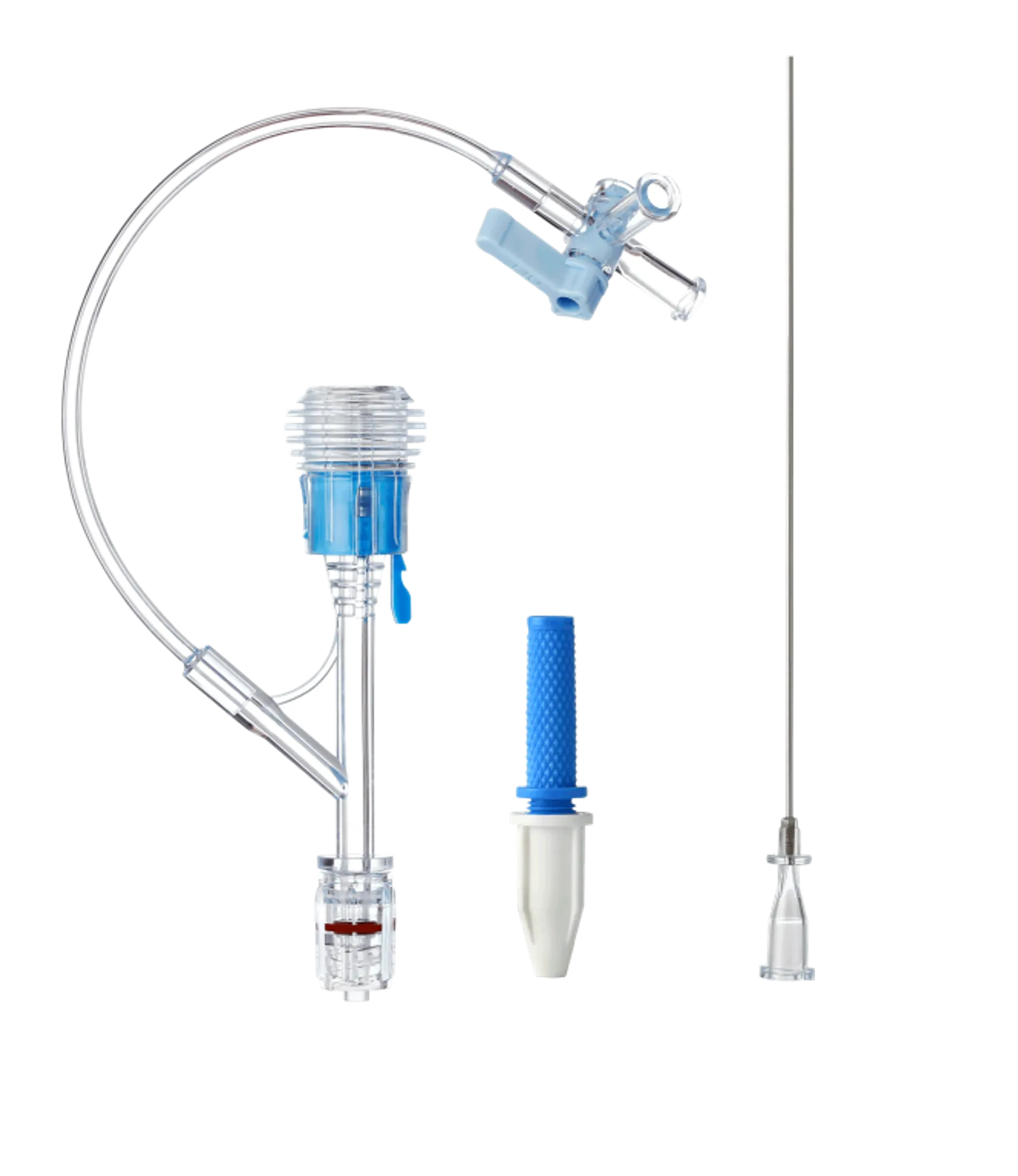

- Available with or without a 17.5 cm fixed bypass extension tube
In practice

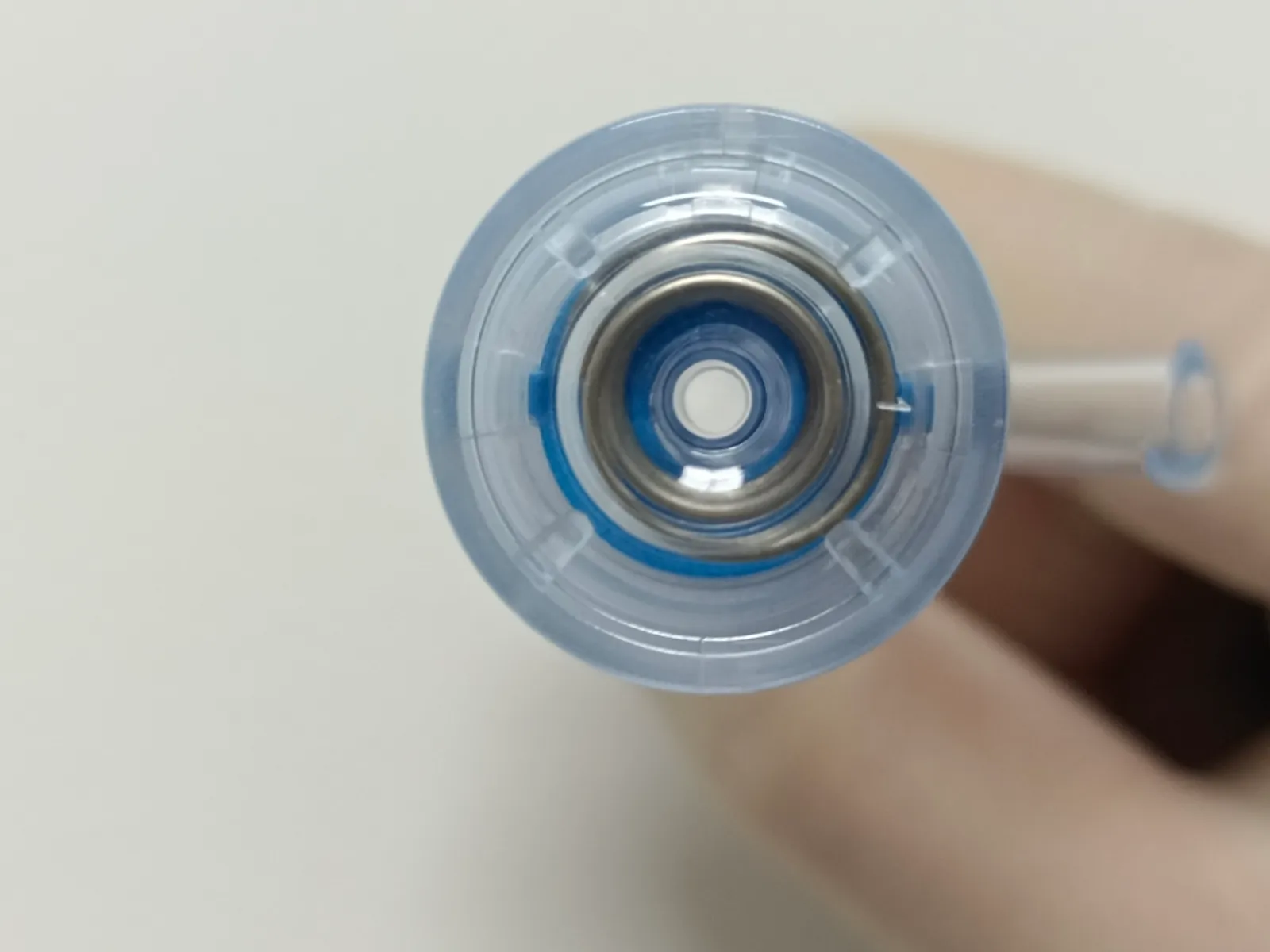

- Half-open, closed and fully open positions cover normal catheters, closed-position advancement and large-profile devices
- Well suited to complex PCI where instrument exchanges are frequent
- In clinician evaluations reported by the manufacturer, blood loss was roughly one third of a conventional rotating hemostasis valve
Ordering information
| Description | Ref. No. | Torque device | Guidewire introducer | Extension tubing |
|---|---|---|---|---|
| Push-Click Y Connector | DPY01 | No | No | No |
| Push-Click Y Connector | DPY02 | No | No | Yes |
| Push-Click Y Connector Kit | DPY01B | Blue torque | Yes | No |
| Push-Click Y Connector Kit | DPY02B | Blue torque | Yes | Yes |
Specifications from the current Zenith 11 Medical catalog. Confirm configuration and sterility requirements at time of order. Prescription use only; refer to the instructions for use.
