Delivery

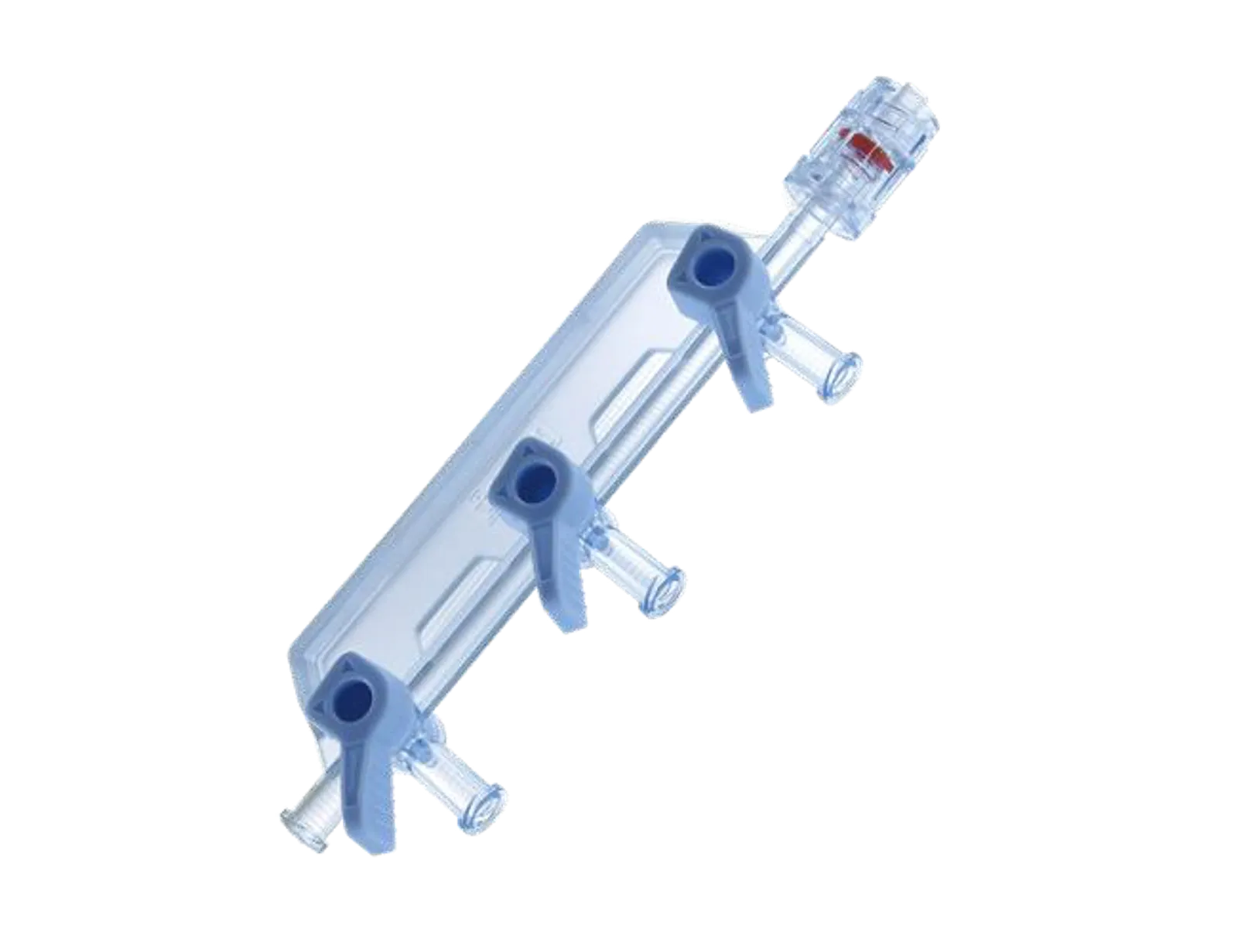

3-Port Manifold
Clear-body manifold rated to 500 psi.
A three-port manifold for contrast, saline and pressure lines with a clear body for fast de-bubbling, rotating luer connections and ON or OFF handle configurations.
- FDA product code
- DTL
- Device listing
- D577325
- Classification
- Class II, 510(k) exempt
- Manufacturer
- Beijing Demax Medical Technology Co., Ltd.
Features
- 3-port manifold with pressure rating up to 500 psi
- Clear body allows easy visibility for de-bubbling
- Easy rotating handles
- Rotating luer for secure connections

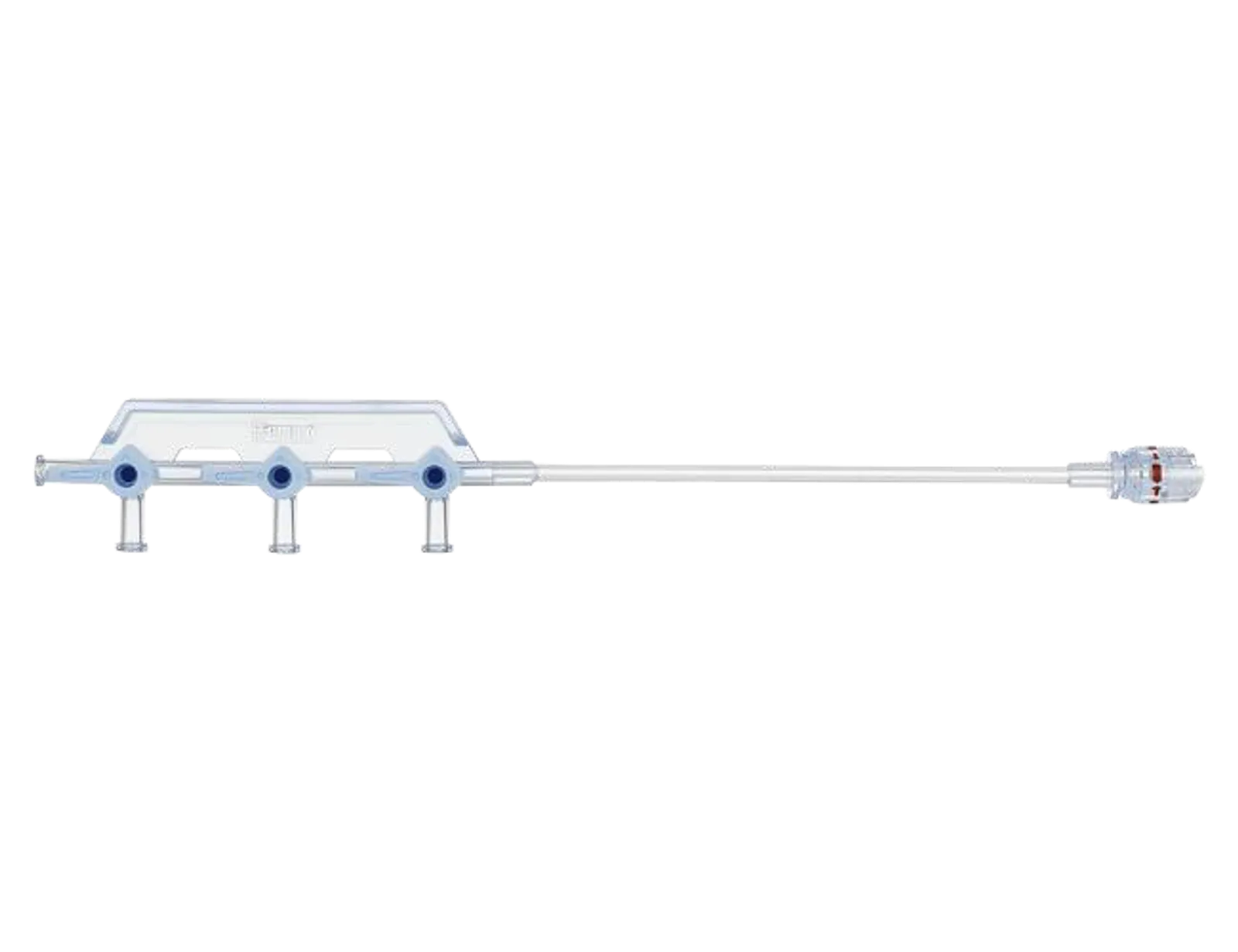

- Optional extension tubing
- ON/OFF handle options
Ordering information
| Description | Ref. No. | Pressure rating | Stopcock type |
|---|---|---|---|
| 3-Port Manifold | DM5003(ON) | 500 psi | ON |
| 3-Port Manifold | DM5003(OFF) | 500 psi | OFF |
Specifications from the current Zenith 11 Medical catalog. Confirm configuration and sterility requirements at time of order. Prescription use only; refer to the instructions for use.
