Access
Introducer Sheath Kit
Radial and femoral access kits, 5F to 8F.

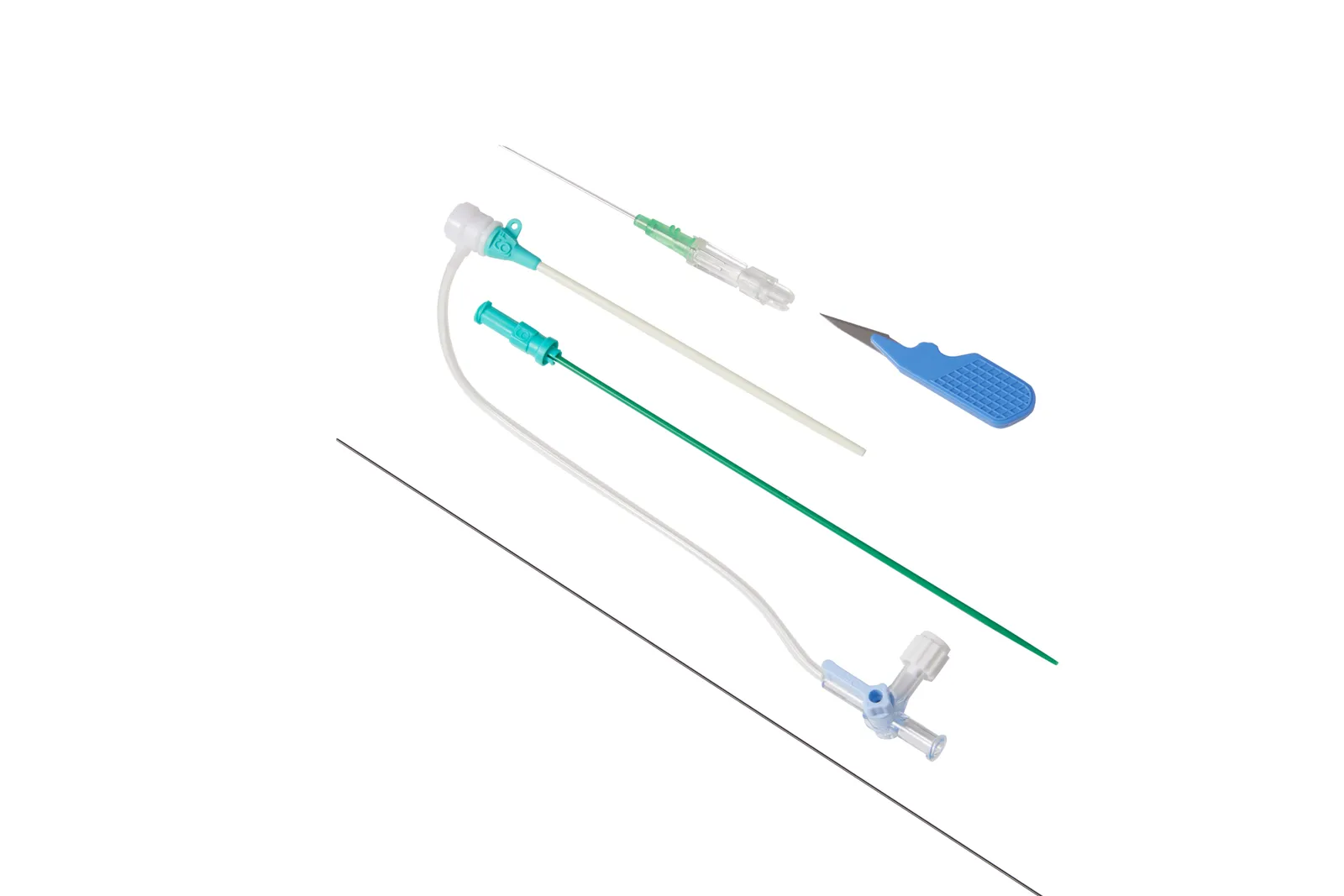

Complete introducer sheath kits for radial and femoral vascular access. Each kit includes the sheath with hemostasis valve and side port, dilator, guidewire and access needle, with an enlarged inner diameter for a smooth dilator-to-sheath transition.
- FDA product code
- DYB
- Device listing
- D577326
- 510(k)
- K222184
- Manufacturer
- Beijing Demax Medical Technology Co., Ltd.
Features
- Enhanced pushability and flexibility
- Enlarged inner diameter for an ultra-smooth transition between dilator and sheath
- Smooth transition section reduces trauma to the vessel wall
- Designed specifically for vascular applications
Ordering information
Radial introducer sheath kits
| Ref. No. | French size | Sheath length (cm) | Guidewire | Needle |
|---|---|---|---|---|
| DQ05082121T/S | 5F | 8 | 0.021 in | 21G |
| DQ05112121T/S | 5F | 11 | 0.021 in | 21G |
| DQ06082121T/S | 6F | 8 | 0.021 in | 21G |
| DQ06112121T/S | 6F | 11 | 0.021 in | 21G |
| DQ07082121T/S | 7F | 8 | 0.021 in | 21G |
| DQ07112121T/S | 7F | 11 | 0.021 in | 21G |
Femoral introducer sheath kits
| Ref. No. | French size | Sheath length (cm) | Guidewire | Needle |
|---|---|---|---|---|
| DQ05113818T | 5F | 11 | 0.038 in | 18G |
| DQ06113818T | 6F | 11 | 0.038 in | 18G |
| DQ07113818T | 7F | 11 | 0.038 in | 18G |
| DQ08113818T | 8F | 11 | 0.038 in | 18G |
Specifications from the current Zenith 11 Medical catalog. Confirm configuration and sterility requirements at time of order. Prescription use only; refer to the instructions for use.
